Running Tailscale as a sidecar container

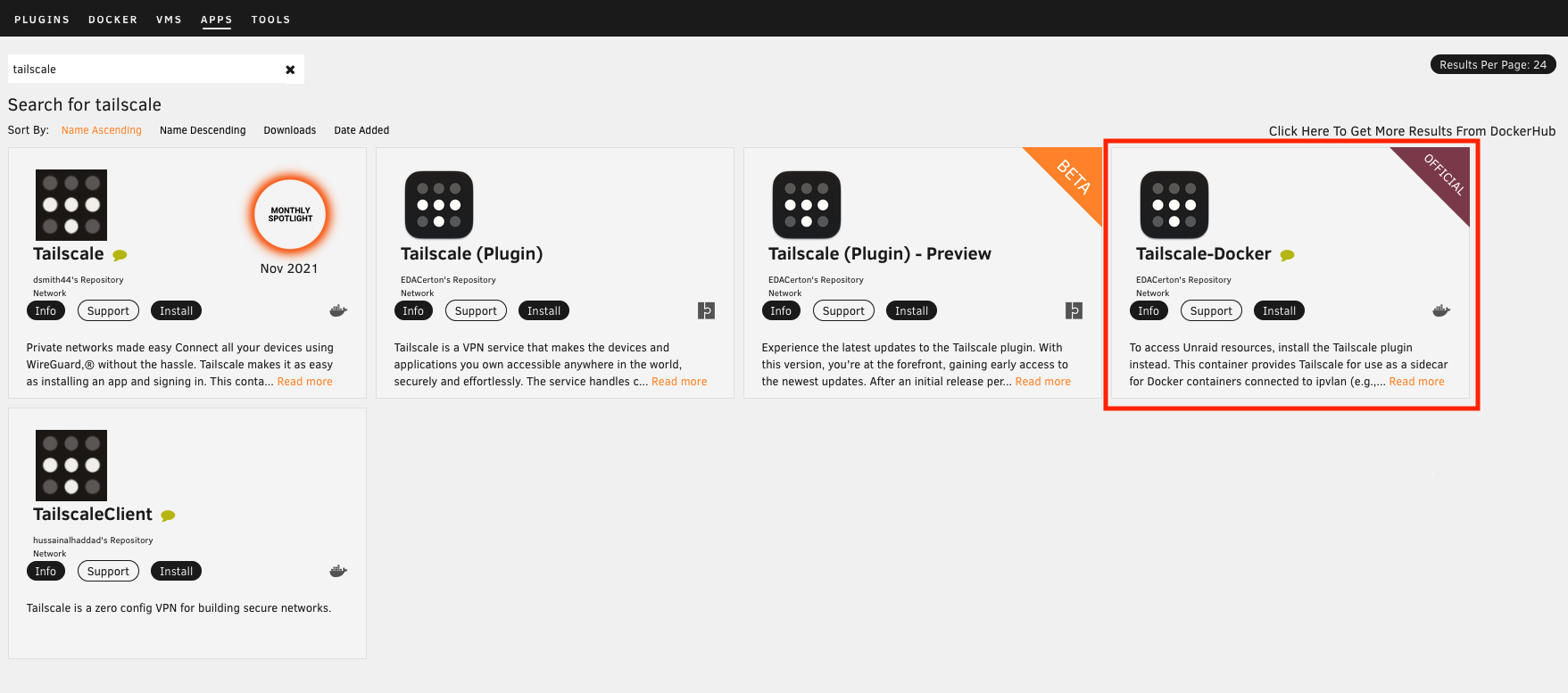

  1. Install Tailscale-Docker from Community Applications.

    Tip

    You can create an auth key from the Tailscale admin console and add that as the Authentication Key in the container settings. If you do not use an auth key, you will need to open the logs after starting the container to get the login link.

    !sidecar-install

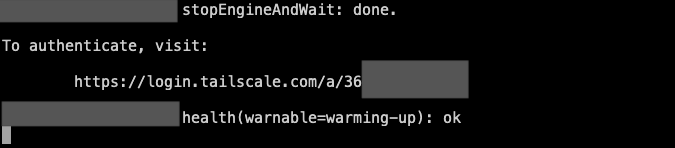

  2. If you did not use an authentication key, open the logs for the created container and use the link to log in.

    Warning

    The container will automatically stop after 60 seconds if the login has not been completed. If using the login link to authenticate, you should start the container, then immediately open the logs and log in to Tailscale.

    !sidecar-login

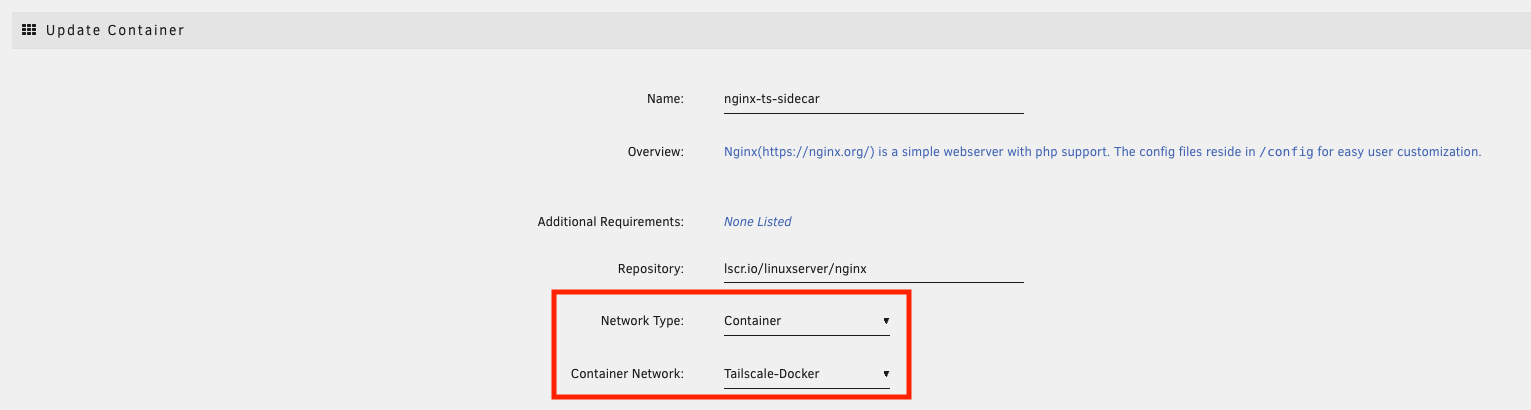

  3. Edit the container that you wish to connect to Tailscale:

    Alternate instructions for Unraid 7.0 beta 2 and earlier

    The option to connect container networks was added after Unraid 7 beta 2. On earlier versions of Unraid, you can manually configure the connection:

    • Network Type: None
    • Extra Parameters: --net=container:CONTAINERNAME
    • Network Type: Container
    • Container Network: The Tailscale container

    !sidecar-connect

    Published ports

    When a container is connected directly to Tailscale, the container ports are used, not the published ports.

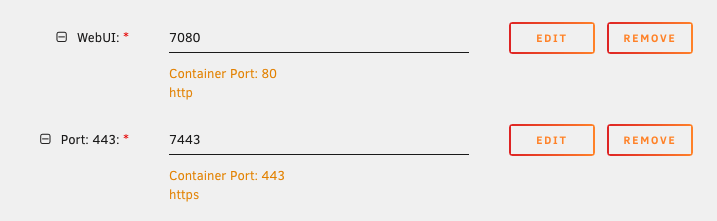

    For example, for a container with these ports:

    !sidecar-ports

    The service would become available on http://server.tailnet.ts.net/ (using port 80) and https://server.tailnet.ts.net/ (using port 443). Ports 7080 and 7443 are not used.

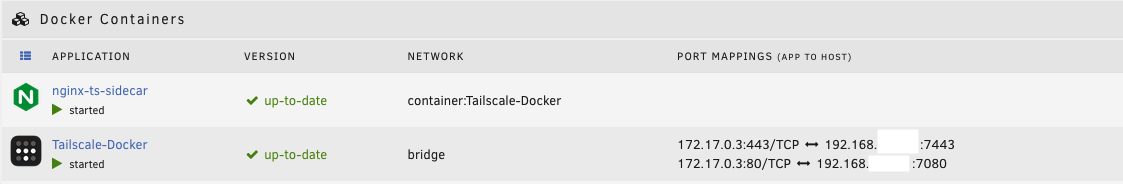

    If you wish to publish ports on a local address in addition to the Tailscale address, you must add the ports to the settings for the Tailscale container.

    !sidecar-ts-ports

Enable Kernel Networking

Info

Userspace networking (the default) is fine for most scenarios (e.g., allowing container to be accessed via Tailscale).

Enabling kernel networking may be required in scenarios where the container must be able to make MagicDNS queries or initiate connections to other Tailscale devices, for example:

  • A backup container that either pulls data from or pushes data to another system via Tailscale. (Backup containers where clients push data to the container via Tailscale do not require kernel networking.)
  • A monitoring container that connects to other systems via Tailscale to monitor system status (e.g., Uptime Kuma)
  1. Edit the Tailscale container.

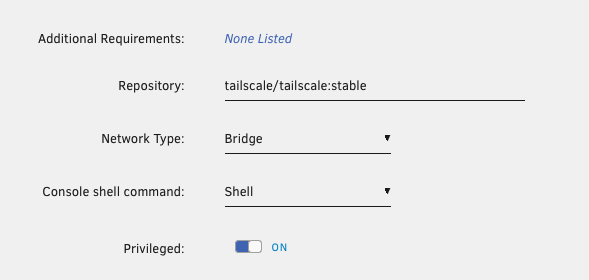

  2. Set Privileged to On.

    !sidecar-kernel-privileged

  3. Expand the settings, then set TS_USERSPACE to false.

    !sidecar-kernel-userspace

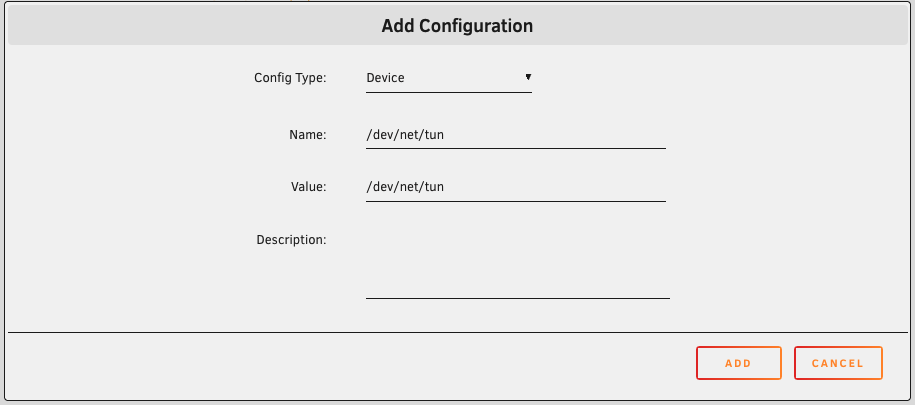

  4. Add a device:

    • Name: /dev/net/tun
    • Value: /dev/net/tun

    !sidecar-kernel-tun

  5. Apply the changes.
